InsulWall® Structural Wall


InsulWall® is load bearing insulated wall panel, developed in conjunction with BlueScope Steel® and Dulux Acratex to offer the residential and commercial market a new building technology as an alternative to monolithic traditional building methods. This simple, all-in-one product uses a unique prime coated BlueScope® steel technology, ready-made for painting, rendering or cladding encasing a high performing insulated core.

InsulWall® offers unique features such as a preformed rebated joint for setting plaster and delivering a continuous coated surface for painting internally using Dulux Wash & Wear and rendering externally using Dulux Acratex. InsulWall® electrical service ducts for easier roughing in of electrical wiring. As part of the Quicker, Leaner, Smarter, Greener patented InsulLiving® building system, InsulWall® provides an alternative building method to conventional builds which incorporate multiple layers and trades; brick veneer, timber/steel framed systems, insulation and plasterboard.


  • Ready-made for painting, rendering or cladding
  • Unique design allows for performed rebated joint for setting plaster for a continuous coated surface
  • Alternative building solution to conventional builds
  • Offers electrical service ducts for easier roughing in of electrical wires.

Typical Applications

  • Residential
  • Modular Buildings
  • Insulated Wall
  • Home Improvements
  • Commercial
  • Walls and Partitions
Fast Facts
Module Width 1200
BCA Compliant Yes
Availability Nationally, Manufactured Locally
CodeMark™ Accredited Yes
Thickness 90 140
Declared R-value (m2K/W) at 23℃ 2.15 3.40
Total R-value (m2K/W) at 15℃ (Winter) 2.41 3.66
Total R-value (m2K/W) at 30℃ (Summer) 2.29 3.48

Expanded Polystyrene with fire-retardant (EPS-FR)

Panel Profile

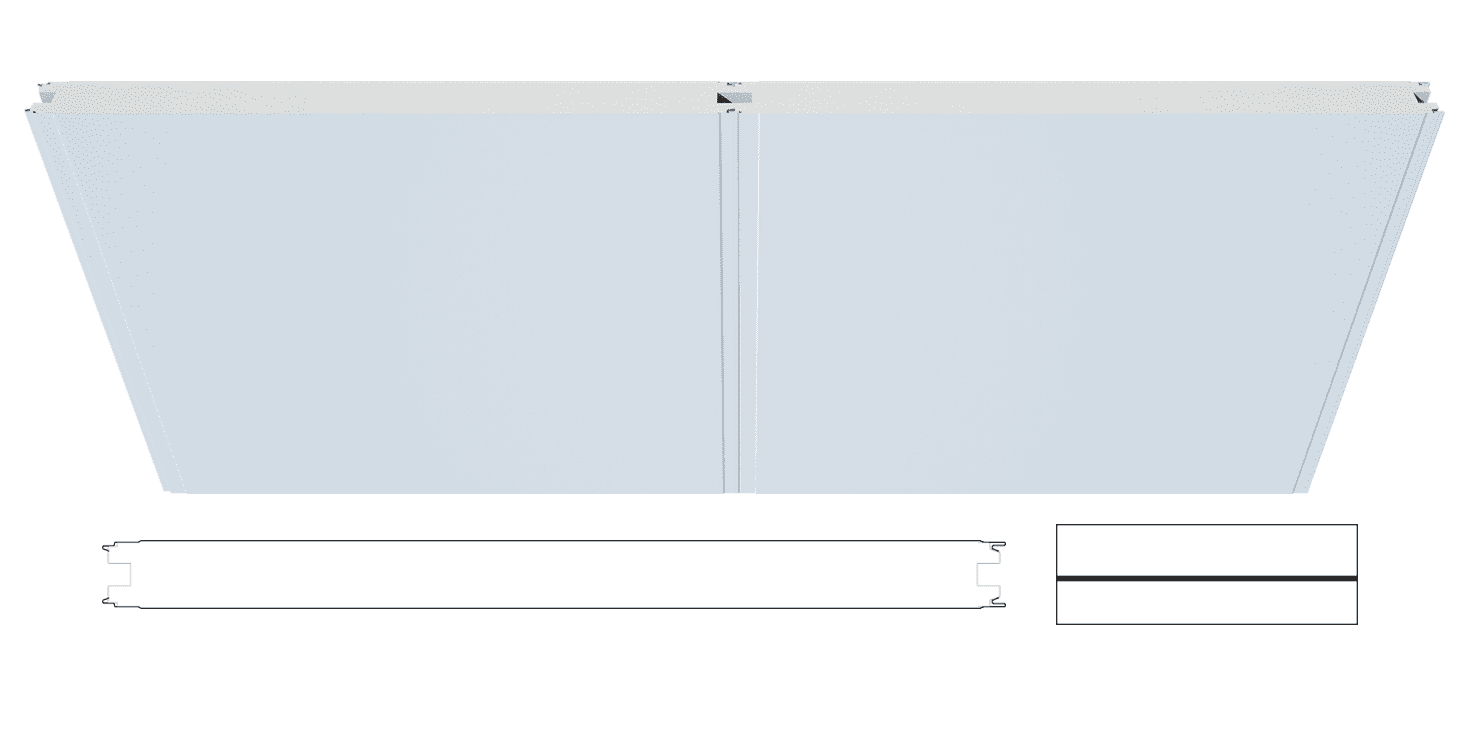

Plain Profile - 90mm

Plain Profile - 140mm
